EndoPump
Multi Irrigation Pump for continuous and clear visibility
Versatile Irrigation Pump for minimal invasive surgery

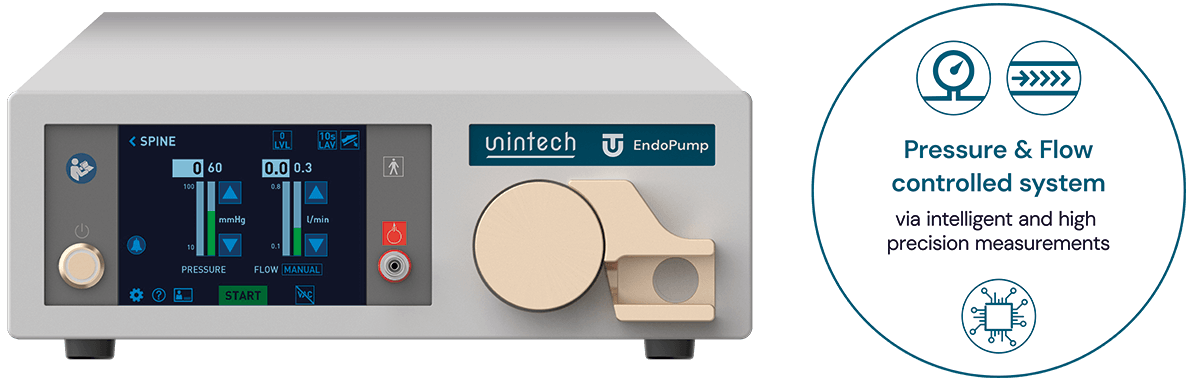

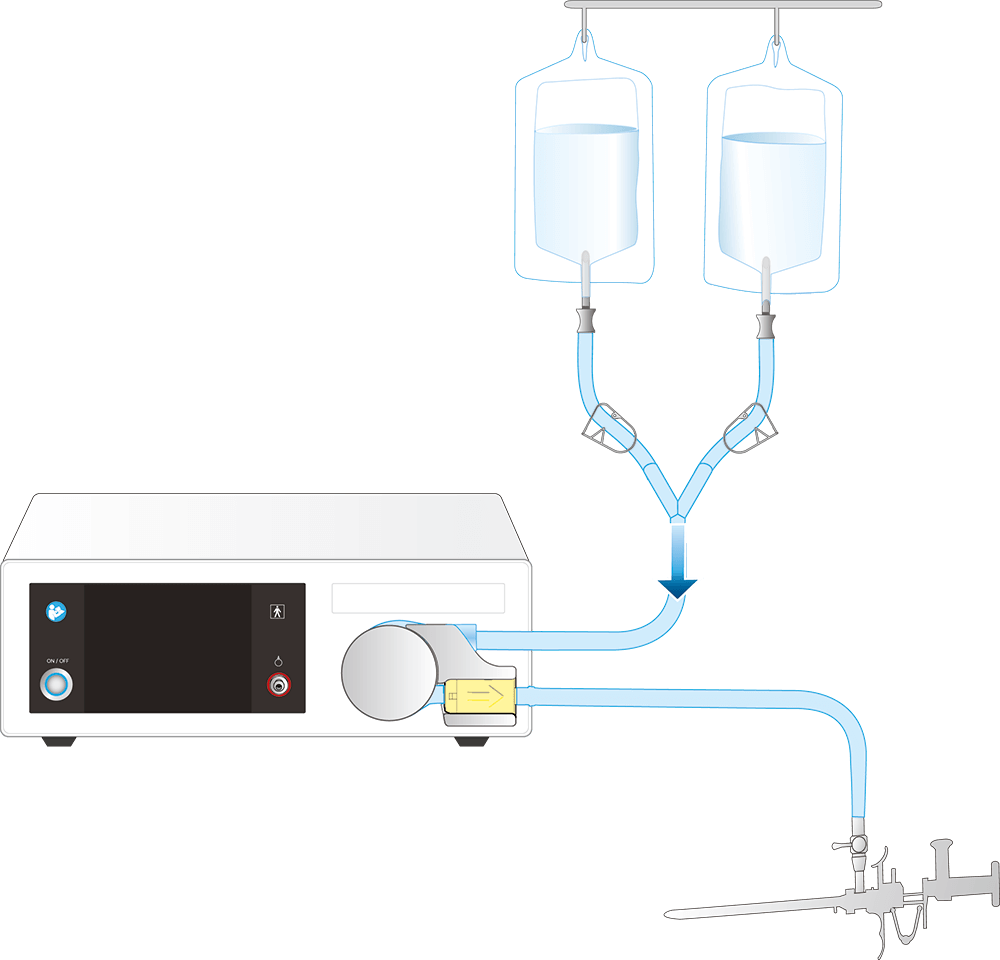

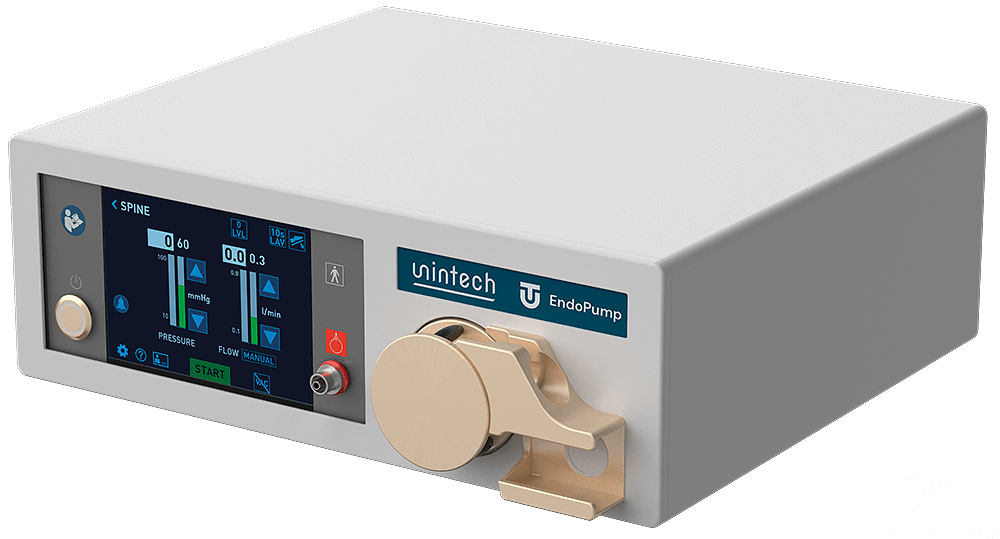

The Unintech EndoPump is a universal and highly customizable fluid management system for minimal invasive procedures. It provides intelligent controlled fluid irrigation and thus distention of the operating situs โ something indispensable during endoscopic spine procedures. It always ensures a clear vision of the situs, which cannot be achieved using purely hydrostatic irrigation.
Features and Benefits

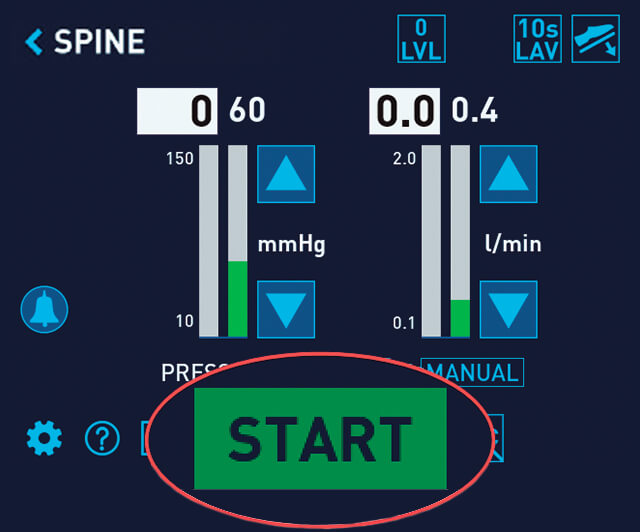

The EndoPump is primarily intended for Endoscopic Spine interventions and regulates continuously the actual pressure to nominal pressure with high accuracy.
Pressure range 10 โ 100 mmHg
Flow range 0,1 โ 0,8 l/min

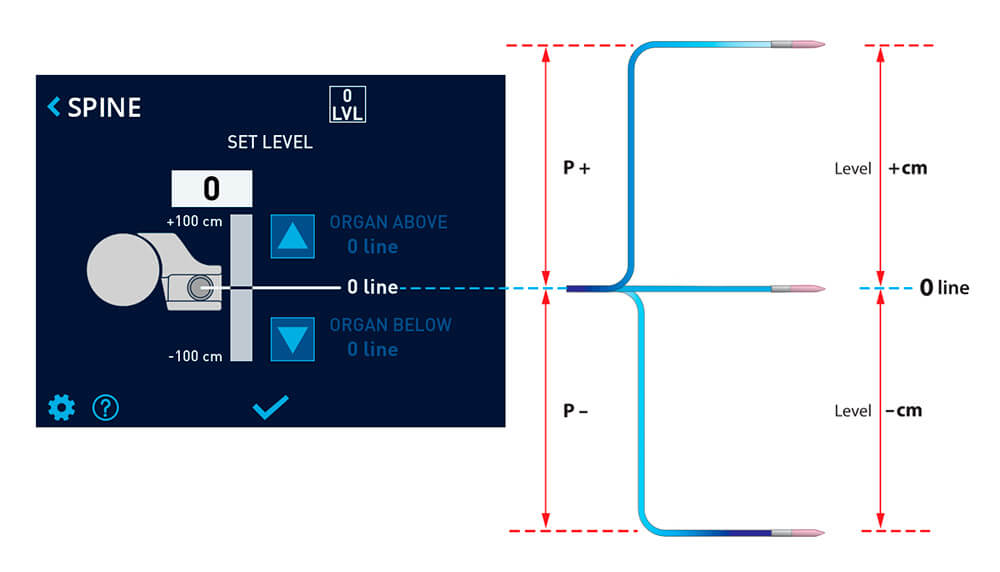

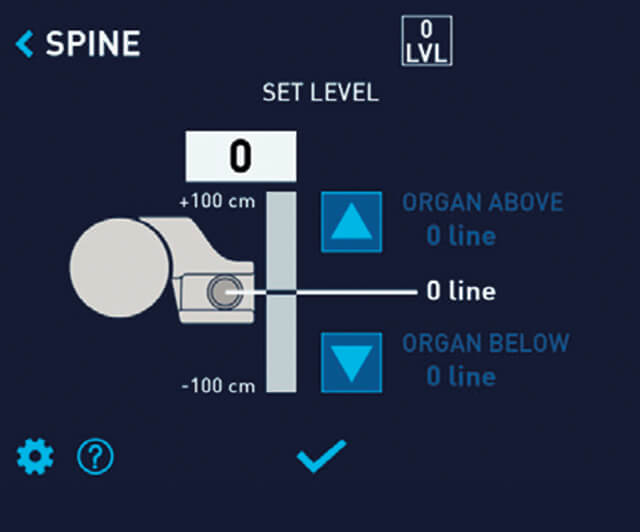

If the operation situs is placed above or below the pump, the inteligent pressure compensation does consider and compensate this hydrostatic pressure difference and displays then the true pressure value.
Easy to operate

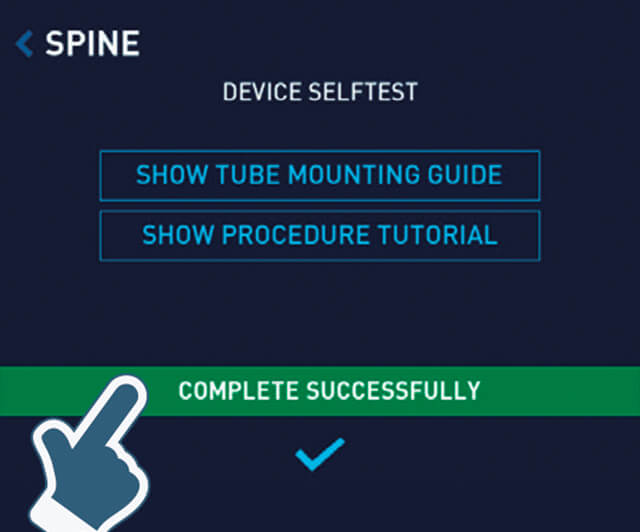

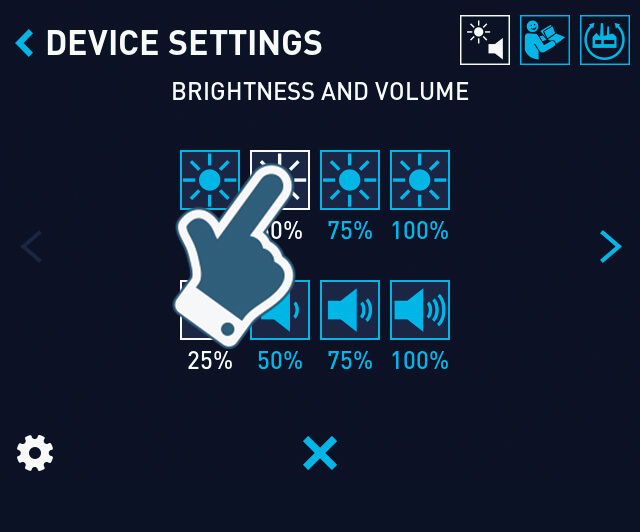

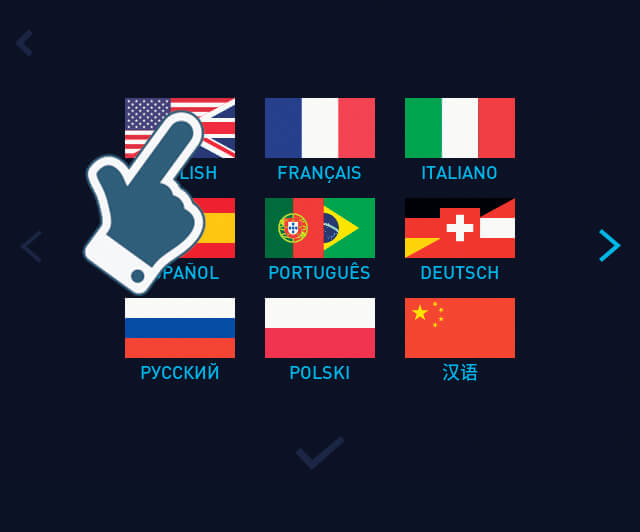

The high-resolution 5.6-inch color touch screen does provide an intuitive operation and guides the user step by step through the entire procedure. Acoustic signals indicate deviations from the set parameters while clear error messages appear then on the display. The user menu display is available in multiple languages. With an additional, to be purchased activation key, the device can also be used for arthroscopy, urology and hysteroscopy.
