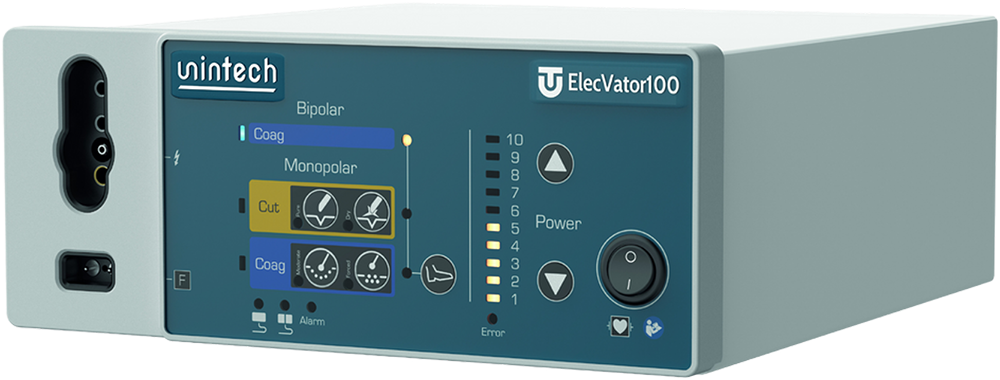

ElecVator100
The compact solution for minimally invasive surgery
The ElecVator100 is best equipped for all requirements of modern surgeries. With one bipolar and one monopolar instrument connection port, and a maximum of 100 watt output power in all modes, it is ideal for a wide range of uses, such as endoscopic spine surgery, as well as general surgery, gynecology, ENT and plastic surgery.
Always intuitive
Keep your eye on everything with the ARC 100. All of the tissue effects and power settings are selected intuitively at the touch of a button. The selected mode and the selected power are shown at all times using illuminated indicators.
Compact yet versatile

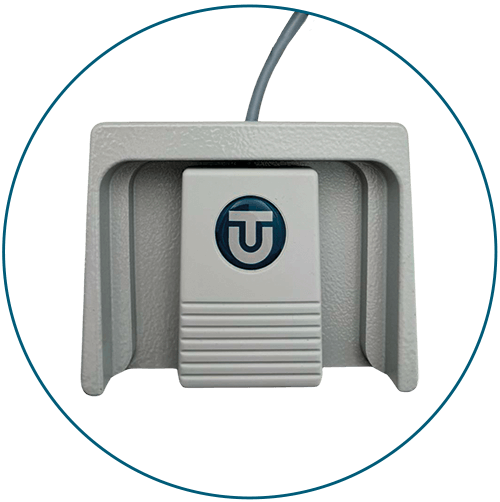

The Elecvator power output has five tissue effects: two monopolar cutting functions, two monopolar coagulation functions and one bipolar coagulation function. The 100 W power output and the tissue effect can be finely adjusted for all modes in 10 steps, using the up and down buttons. The bar display assists in a rapid detection of the selected power. All modes can be activated using the foot switch. For monopolar cutting and coagulation, activation is also available through the handle.
Precise cutting & effective coagulation modes
The ElecVator100 offers five different programs and thus five different tissue effects:
- Bipolar COAG: Bipolar coagulation using bipolar probes, forceps, instruments
- Moderate COAG: Soft dessucation of the tissue
- Forced COAG: Fulguration of the tissue
- Pure CUT – for pure cuts without hemostatitis
- Dry CUT – cuts with a strong hemostatic effect (“blend”)
Precise bipolar coagulation mode for Endoscopic Spine surgery. This mode allows precise coagulation of tissue surrounding the spinal cord, using the unintech bipolar EndoSweeper instrument. As well, other standard bipolar instruments can be used for other indications. No neutral electrode is required for bipolar coagulation.

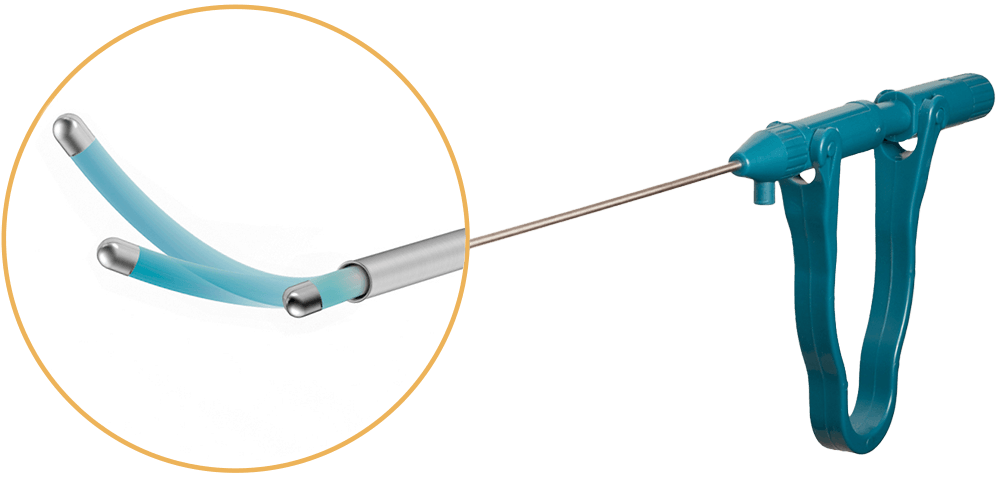

HF Handle
HF Handle with Bipolar Electrode
The ergonomic design of our coagulation instrument ensures optimal control during all endoscopic spinal procedures. This sterile, single-use product meets the most modern requirements for efficiency and safety in medical devices.
The HF Handle consists of handle, shaft, cable and bipolar electrode, all in one product, sterile and ready to use.
