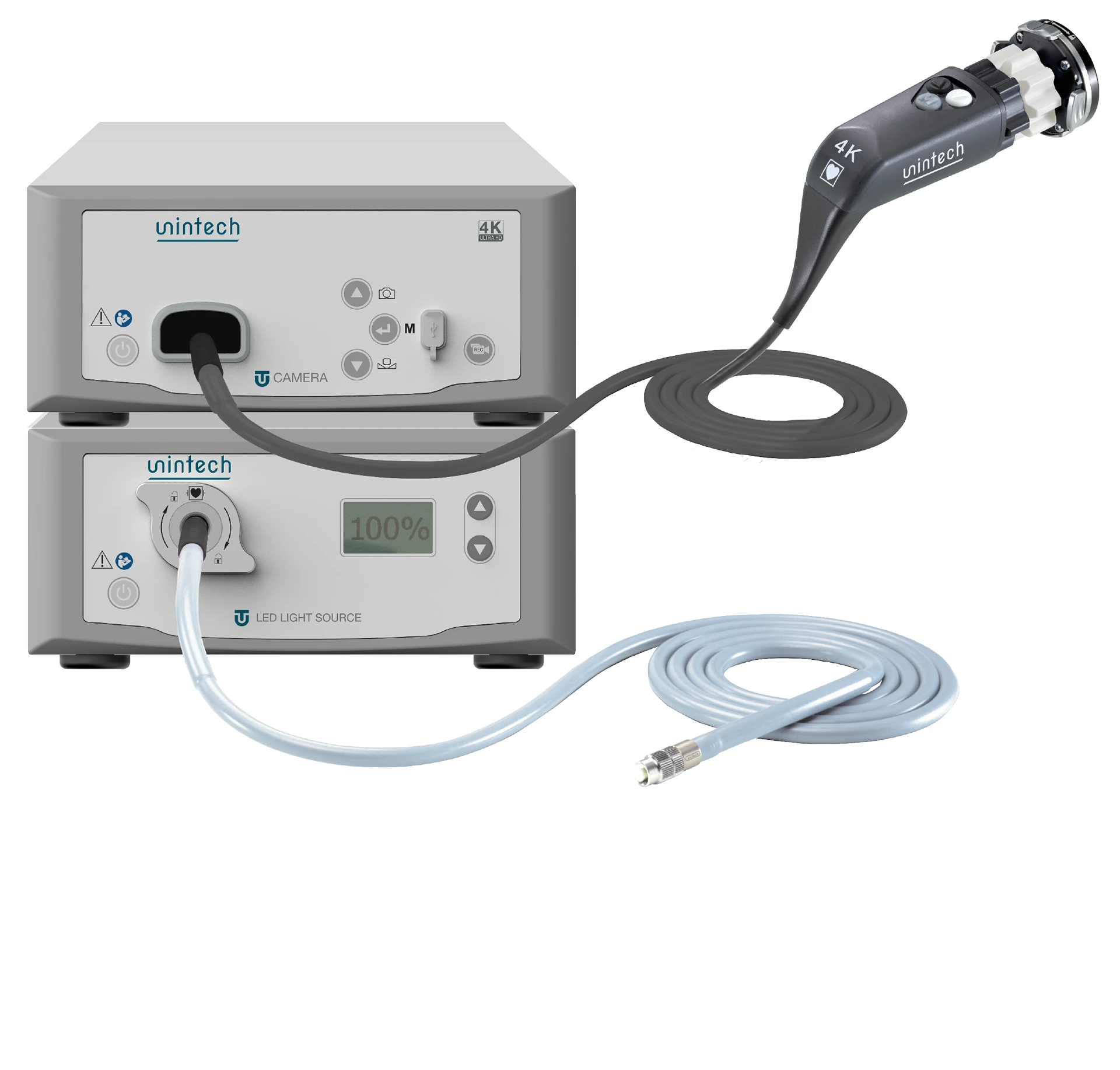

Camera-Light-System for superior visualization
The different components are the fundament for the high image quality of our camera-light-platform: Camera consoles, camera heads, light sources and light guides can be put together to form various combination solutions, similar to a modular system, according to your needs and requirements.
Features of the Camera Light System
In combination with our suitable monitors, the cameras offer a superb 16:9 image size in 4K-UHD or FHD full-frame image resolution
For optimal image display, the camera has preset different profiles of endoscopic applications, additional profiles can also be created
Several monitors can be connected in parallel, also overlays on the monitor (PiP) are possible
Images and videos can be stored to an external USB device. Also external documentation systems can be connected

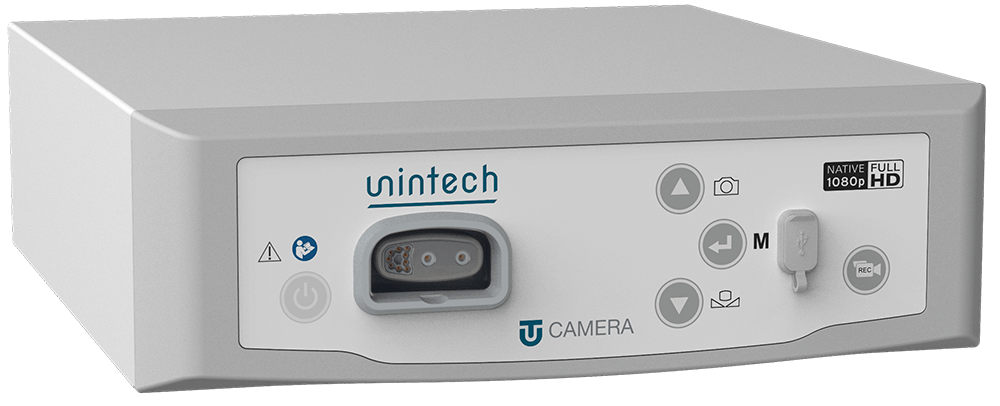

Camera Controller
- Natural color reproduction through BT2020 standard
- Color Enhancement and other technical parameters are selectable
- Multiple language configuration menu available
- Menu control via Camera head possible
- MIS-Bus interface for automatic light control selectable
- Multi-connectivity of different camera heads

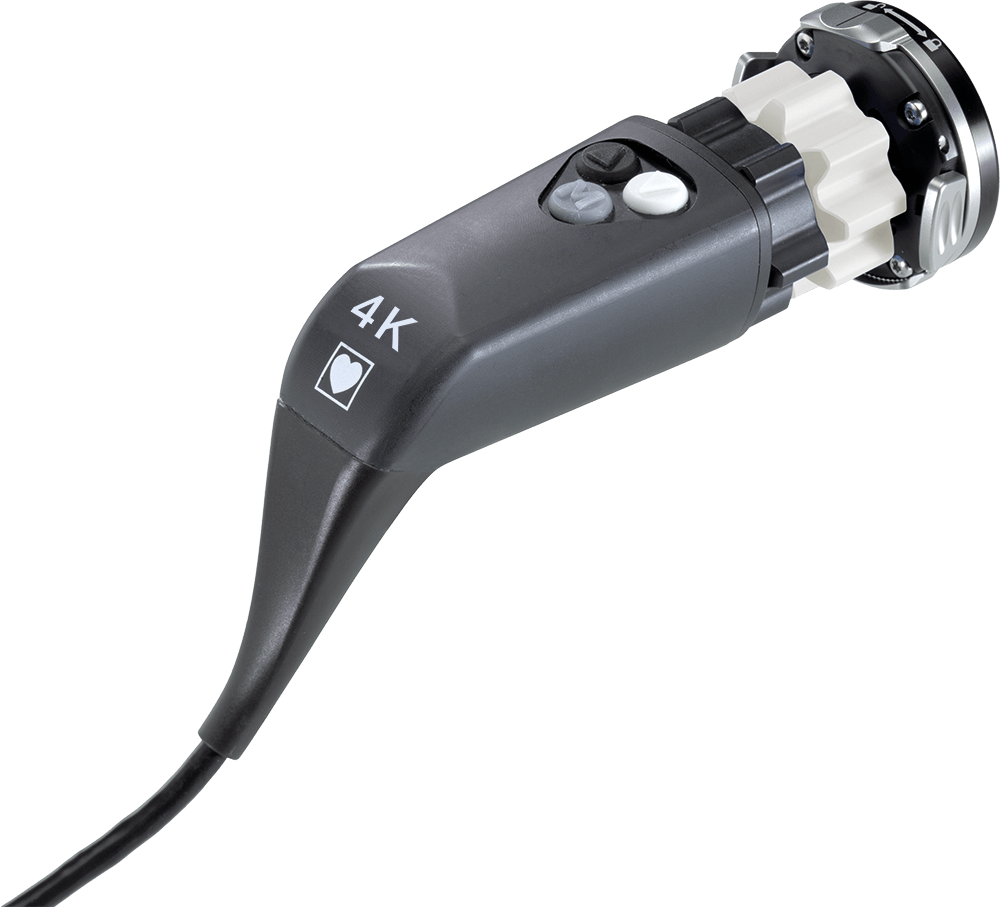

Cameras Heads
- Three different camera heads are available: UHD-3CMOS, FHD-3CMOS and FHD-1CMOS
- The assignment of the camera head key functions is selectable
- Camera heads are STERRAD compatible
- Camera heads have an integrated objective, for optical zooming and focussing of the live image
- Perfect match for perfect colors through 3CMOS technology and BT2020 Standard
- BT2020 with its extended color spectrum, ensures more natural color reproduction
- With a CRI value >90, the light source provides a color temperature like that of sunlight, making all colors appear very natural

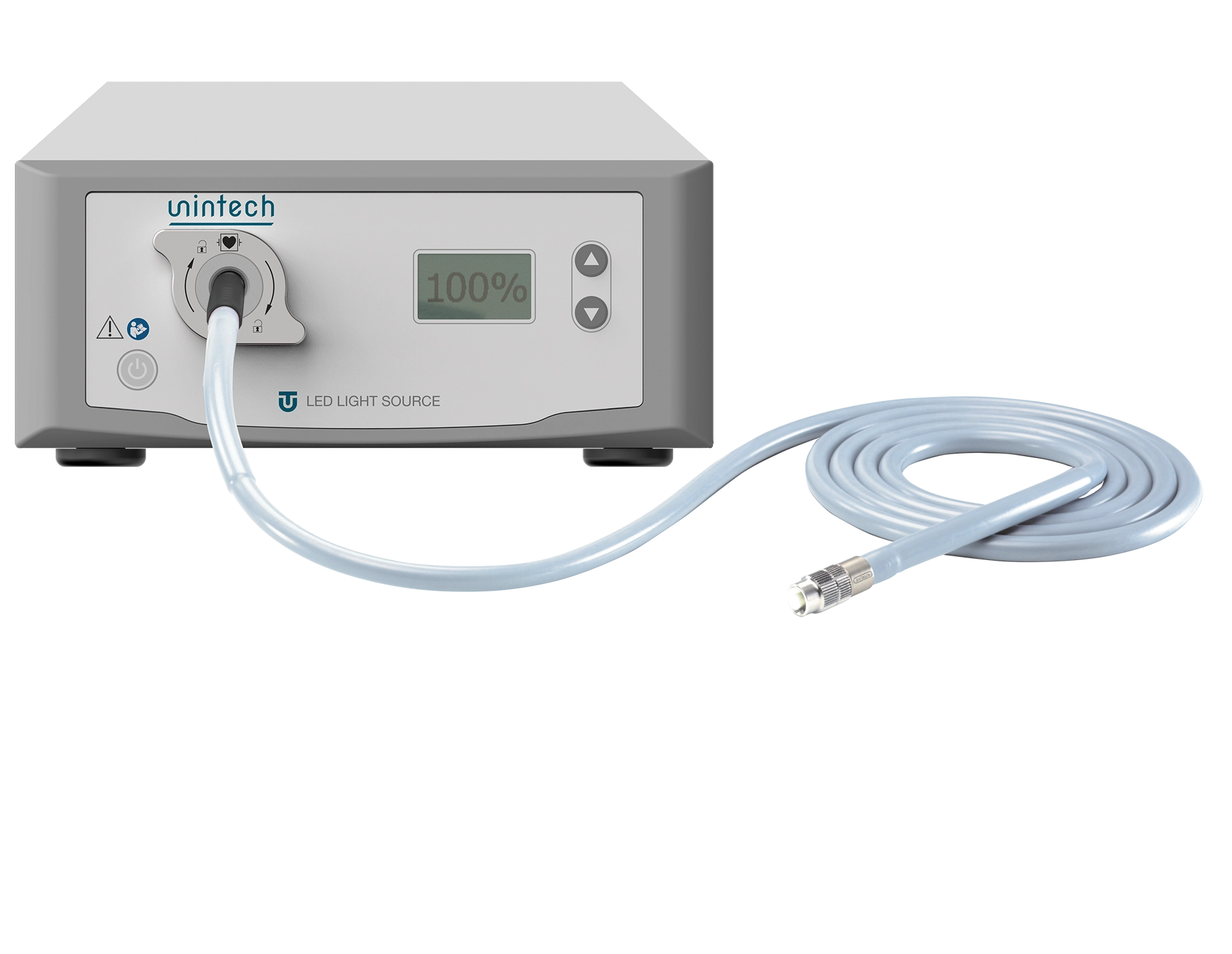

LED Light Source
Features and Benefits
- High performance cold light source, suitable for all endoscopic applications
- LED with long life time (>30.000 h)
- Low heat production of the device and therefore very silent ventilation (Whisper)
-
High luminance with CRI >90 (sun light color temperature),
comparable with 300 W Xenon - Light intensity selectable by front keys (dimmable between 5 – 100%)
- Large LCD display shows light intensity level, inclusive standby mode
- Efficient automatic light control via MIS-Bus interface to camera controller available
- Multi light guide connection port (Storz, ACMI, Stryker, Wolf)
